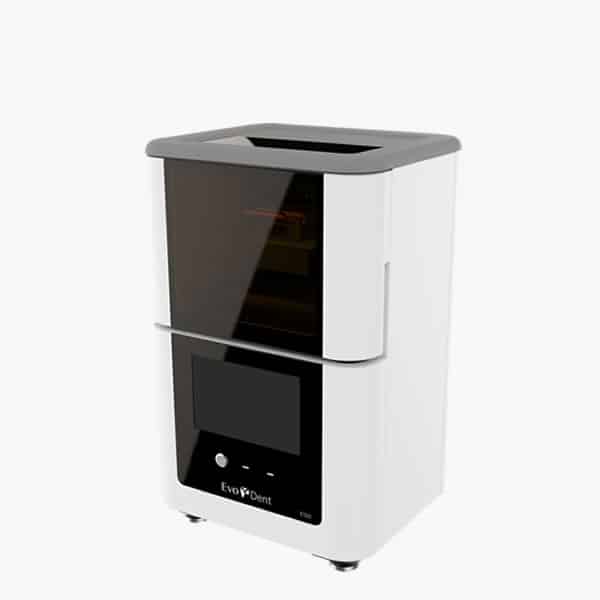

EvoDent E120

The EvoDent E120 is the newest release in the E Series line of compact desktop 3D Dental Printers for dental offices as well as dental labs.

  • Accurate
  • Affordable
  • Fast & Easy to Use



Technical Data

Build Envelope 120 x 67.5 x 80mm
Native Pixel 62.5µm
Resolution 1920 x 1080 HD
Light Source UV LED
Layer Thickness 50µm, 100µm
Speed 40mm/h
Interface USB / Ethernet / WiFi
Power Requirements 110/120VAC, 50/60Hz, 500W
Dimensions 17.75" x 15" x 25.25"
Weight 84lbs
Recommended Indications Model, Surgical Guide, Base, Gingiva, Mask, C&B, Tray Cast, Ortho Model, Ortho IBT, Ortho Rigid



EvoDent E140

The EvoDent E140 is specifically designed for surgical (drill) guide and ortho applications offering a larger build envelope and larger native pixel.

  • Accurate
  • Affordable
  • Fast & Easy to Use



Technical Data

Build Envelope 144 x 81 x 80mm
Native Pixel 75µm
Resolution 1920 x 1080 HD
Light Source UV LED
Layer Thickness 50µm, 100µm
Speed 40mm/h
Interface USB / Ethernet / WiFi
Power Requirements 110/120VAC, 50/60Hz, 500W
Dimensions 17.75" x 15" x 25.25"
Weight 84lbs
Recommended Indications Surgical Guide, Tray, Model, Ortho IBT, Ortho Rigid



EvoDent S110

The EvoDent S110 is the highest resolution 3d Digital Dental printer in the EvoDent line of Digital Dental 3d printers, offering a superior quality, high volume, and extremely fast option in digital printing.  This is the  single 3d print solution for every application.

  • Accurate
  • Efficient
  • High Volume



Technical Data

Build Envelope 110.3 x 62.6 x 80mm
Native Pixel 58µm
Resolution 1920 x 1080 HD
Light Source UV LED
Layer Thickness 50µm, 100µm
Speed 40mm/h
Interface USB / Ethernet / WiFi
Dimensions 17.75" x 15" x 33"
Weight 97lbs

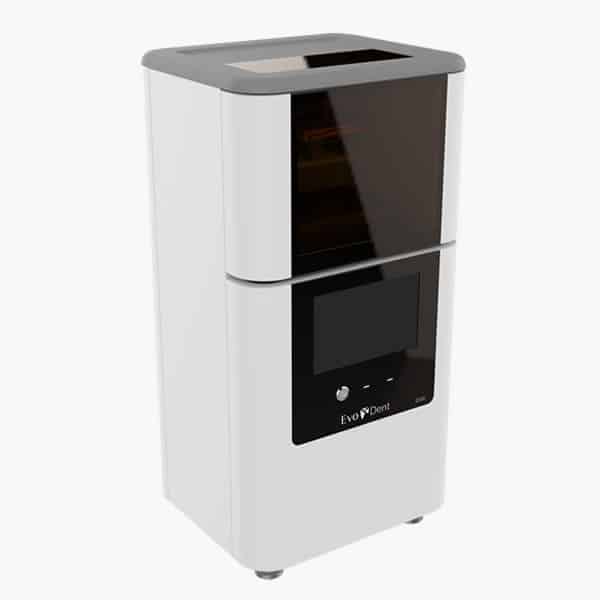

EvoDent S130

The EvoDent S130 offers a larger build area for higher volume printing providing superior quality and extremely fast prints. The S130 is a single 3d print solution for every application.

  • Accurate
  • Efficient
  • High Volume



Technical Data

Build Envelope 130.5 x 73.4 x 80mm
Native Pixel 68µm
Resolution 1920 x 1080 HD
Light Source UV LED
Layer Thickness 50µm, 100µm
Speed 40mm/h
Interface USB / Ethernet / WiFi
Dimensions 17.75" x 15" x 33"
Weight 97lbs
